Working with electricity requires a healthy amount of respect and the right set of procedures to stay safe. You cannot see electricity, but its effects are instant and potentially dangerous if you make a mistake. Learning how to test electrical wiring is a fundamental skill for any homeowner who wants to handle minor repairs or troubleshoot issues. It allows you to verify that power is off before working or to identify why a specific outlet stopped functioning.
Many people feel intimidated by electrical systems because the wires are hidden behind walls. However, the logic behind residential wiring is straightforward once you understand the basics of flow and grounding. You do not need an engineering degree to perform basic diagnostic tests on switches, outlets, and light fixtures. You simply need the correct tools and a strict adherence to safety protocols to protect yourself from shock.
This guide provides a detailed look at the methods used to check wiring integrity and voltage presence. We will cover the essential tools you need to own and the specific steps to use them effectively. By following these instructions, you can confidently assess the state of your home’s electrical connections.
You cannot test electricity safely without specific diagnostic equipment designed for the job. Guesswork is not an option when dealing with high-voltage household circuits. Investing in quality tools protects you and provides accurate results during your troubleshooting process.
The most basic tool every homeowner should own is a non-contact voltage tester.
This pen-shaped device detects the presence of voltage without requiring you to touch bare wires. It is your first line of defense to confirm that a circuit is truly dead before you unscrew a wall plate. These testers are inexpensive and easy to carry in a pocket for quick checks.

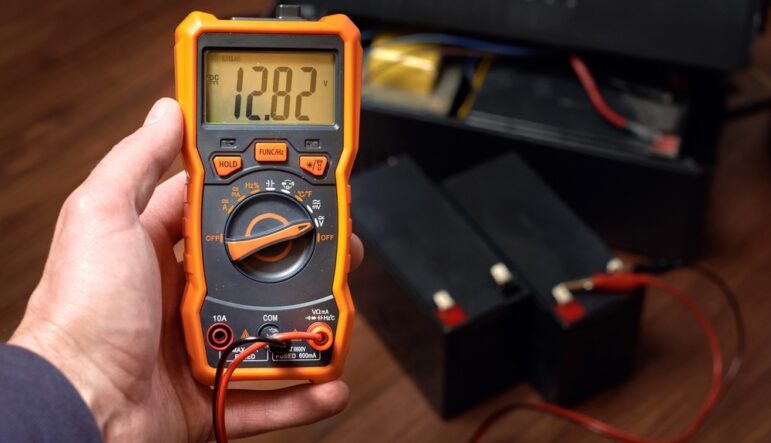

For more detailed analysis, a digital multimeter is the industry standard instrument. A multimeter measures AC voltage, DC voltage, resistance, and continuity with high precision. It allows you to see exactly how much voltage is flowing or if a wire is broken somewhere in the wall. While it has a steeper learning curve than a voltage pen, it offers far more data regarding the health of your wiring.
A receptacle tester, often called a plug tester, is specifically designed for standard three-prong outlets. You simply plug it into an outlet, and a pattern of lights indicates if the wiring is correct. It can instantly identify common faults like open grounds or reversed hot and neutral wires. This tool is invaluable for quickly checking every outlet in a room after a renovation.
As any qualified electrician in Clayton and elsewhere will tell you, safety must always remain your primary focus when working with any electrical component. The risk of shock or arc faults exists whenever you interact with household wiring systems. You must adopt a mindset that every wire is live until you prove otherwise with a tester.
Warning: Never assume a circuit is off just because a switch is down. Always turn off the main breaker at the electrical panel and verify the power is cut before touching anything.
Go to your main service panel and locate the breaker that controls the area you intend to test. Flip the breaker to the “Off” position and place a piece of tape over it if others are in the house. This prevents someone from accidentally restoring power while you are working on the circuit. If you are unsure which breaker controls the circuit, turn off the main breaker to cut power to the entire house.
Wear rubber-soled shoes and avoid working in wet or damp conditions. Water significantly lowers the resistance of your skin and increases the danger of electrical shock. If you are testing a basement or outdoor circuit, verify that the floor is dry before you begin. Always use tools with insulated handles to add an extra layer of protection between you and the current.
The non-contact voltage tester is the safest way to begin any electrical project. It allows you to check for power without physically touching the copper wires or metal terminals. This section explains the proper procedure for using this tool to verify a safe work environment.
Turn on the tester and check it against a known live source, such as a working lamp cord or outlet. This confirms the batteries are good and the sensor is operating correctly.
Tip: Replace the batteries immediately if the beep or light seems weak during this test.
Place the tip of the tester directly against the wire insulation or into the narrow slot of an outlet. You do not need to touch bare metal; the sensor detects the electromagnetic field through the plastic.
Watch for a flashing light or listen for a continuous chirping sound, which indicates the presence of voltage. If the tester remains silent and dark, the wire is likely safe to handle.
Tip: Test multiple wires in a box, as different cables may be controlled by different breakers.
Key Takeaways:
A receptacle tester is the easiest way to diagnose problems with standard wall outlets. This device looks like a large plug with three indicator lights on the end. It is designed to tell you if the outlet is wired correctly without removing the faceplate.
Simply insert the tester into the outlet you want to check and observe the light pattern. Most models have a legend printed directly on the device that explains what the combination of lights means. Two amber lights usually indicate that the wiring is correct and the outlet is grounded. A red light or no lights at all indicates a fault that requires attention.
Common issues identified by this tool include “Open Ground,” “Open Neutral,” and “Reverse Polarity.” An open ground means the safety wire is disconnected, which won’t stop the outlet from working, but reduces your protection. Reverse polarity means the hot and neutral wires are swapped, which can pose a shock hazard with certain appliances.
While a voltage pen tells you if power is present, a multimeter tells you how much power is there. This is necessary for diagnosing voltage drops or verifying that an outlet is delivering the full 120 volts. Set your multimeter to the AC Voltage setting, often denoted by a V with a wavy line over it.
Insert the black probe into the COM (common) port and the red probe into the voltage port on the meter. To test an outlet, carefully insert the black probe into the wide slot (neutral) and the red probe into the narrow slot (hot). The meter should read approximately 110 to 125 volts for a standard household circuit.
Tip: Hold the probes by the insulated plastic handles and never touch the metal tips while measuring live voltage. Keep your fingers behind the finger guards on the probes.
You can also use the multimeter to check the grounding of an outlet. Leave the red probe in the narrow slot (hot) and move the black probe to the round grounding hole. The reading should remain at 120 volts if the ground connection is solid. If the reading drops to zero, the ground wire is likely disconnected or broken.
Continuity testing determines if a continuous electrical path exists between two points. This test is performed with the power off and is useful for checking fuses, switches, and broken wires. Set your multimeter to the continuity setting, which usually looks like a sound wave symbol or a diode symbol.
Touch the two probes together to test the meter; you should hear a beep. To test a single-pole light switch, place one probe on each of the side screw terminals. When the switch is in the “On” position, the meter should beep, indicating a closed circuit. When you flip the switch to “Off,” the beeping should stop.
This method also works for checking if a fuse is blown. Touch the probes to opposite ends of the fuse. A beep indicates the fuse is good and can carry current. Silence indicates the internal element is melted, and the fuse must be replaced.
Understanding what your test results mean is just as important as performing the test itself. Several common wiring faults appear frequently in residential homes, especially in older construction. Recognizing these patterns helps you decide if a repair is within your skill level.
Reverse polarity occurs when the hot (black) and neutral (white) wires are connected to the wrong terminals on an outlet. The outlet will still power devices, but the safety mechanism is compromised. This is a simple fix that involves swapping the wires to their correct screws: black to brass, white to silver.
An open ground reading means the grounding wire is not connected or is broken upstream. This is common in older homes that were originally wired with two-prong outlets. While you can install a GFCI outlet to provide shock protection, you should not simply replace a two-prong outlet with a three-prong one without addressing the ground.
A short circuit happens when a hot wire touches a neutral or ground wire, causing a massive surge of current. This usually trips the breaker immediately. If you find black scorch marks or melted insulation during your testing, you are likely dealing with a short circuit that requires wire replacement.
There are limits to what a homeowner should attempt to diagnose and repair on their own. If your testing reveals confusing results or signs of significant damage, it’s time to bring in an expert electrician in Wendell or the surrounding areas.. Electrical fires are a real risk when repairs are done improperly.
Key Takeaways:
Learning how to test electrical wiring gives you the power to troubleshoot your home safely and effectively. By using the right tools and following strict safety protocols, you can identify simple issues like a bad switch or a loose outlet connection. Remember that the goal is not just to fix the problem, but to verify that the repair is safe for everyone in the house.
Always start with a non-contact voltage tester and never hesitate to turn off the main power if you have doubts. With these skills, you can maintain your home’s electrical system with confidence. However, when the task is too tall, get in touch with and count on the professionals at DC Electric of Raleigh.
